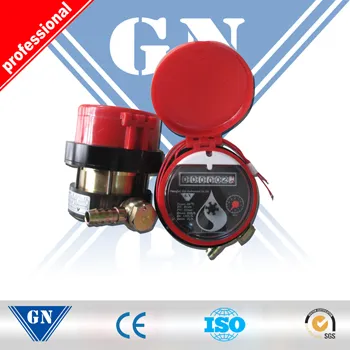

![Oil Flow Totalizer Meter (CX](/uploads/s/54e81c944768482a906e55602af5370e.webp)
Oil Flow Totalizer Meter (CX
Flow Meter Fuel Consumption Flow Meter A.[Features of Fuel consumption flow meter] Professional flow meter for fuel cons
Basic Info.
Model NO. | CX-FM |
Certificate | ISO,CE and SGS |
Flow Range | 1~80L/H,4-200L/H |
Transport Package | Carton/Polywood Case /Wood Case |
Specification | CE, SGS, ISO |
Trademark | GN |
Origin | Shanghai |
HS Code | 9026100000 |
Production Capacity | 3000/Month |
Product Description
Flow Meter Fuel Consumption Flow Meter
A.[Features of Fuel consumption flow meter]
Professional flow meter for fuel consumption
This flow meter just for fuel consumption engine
High Accuracy
This flow meter with 1.0% high accuracy by the rotate piston principle
Display and Output
The fuel consumption flow meter with local mechanical display and pulse output(optional)
Prevent Steal Oil
The fuel consumption flow meter can prevent stealing oil by driver and reduce the cost.
Normal Function
360° Cover , waterproof ,dustproof and connection with GPS.
B.[Parameter]
Production Name | Car Boat Fuel Consumption Flow Meter |
Medium | Fuel;Diesel and other oil |
Display | Local Mechanical display |
Accuracy | 1.0% |
Material | Brass cavity |
Temperature | -40~80ºC |
Pressure | 32Bar |
Output | Pulse output |
B:Filter
R:Pulse output
OEM:Pulse output but without Display
Model | Display | Filter | Flow range (L/h) | Accuracy | Output | Pressure (Mpa) | Temperature (ºC) |
V4 | • | - | 1~100 | 1.0% | - | 32 | -40~80ºC |
V4B | • | • | 1~100 | 1.0% | - | 32 | -40~80ºC |
V4OEM | - | - | 1~100 | 1.0% | Pulse | 32 | -40~80ºC |
V4BOEM | - | • | 1~100 | 1.0% | Pulse | 32 | -40~80ºC |
V4R | • | - | 1~100 | 1.0% | Pulse | 32 | -40~80ºC |
V4BR | • | • | 1~100 | 1.0% | Pulse | 32 | -40~80ºC |
V8 | • | - | 4~200 | 1.0% | - | 32 | -40~80ºC |
V8B | • | • | 4~200 | 1.0% | - | 32 | -40~80ºC |
V8OEM | - | - | 4~200 | 1.0% | Pulse | 32 | -40~80ºC |
V8BOEM | - | • | 4~200 | 1.0% | Pulse | 32 | -40~80ºC |
V8R | • | - | 4~200 | 1.0% | Pulse | 32 | -40~80ºC |
V8BR | • | • | 4~200 | 1.0% | Pulse | 32 | -40~80ºC |
C.[Function]
- Ensure direct measurement accuracte, easy and safe.
- It has function same aire elimilator.
- Pulsation will disappear when fuel goes through the adjustor.
- The pressure in return line will be zero with the adjustor.
- The V4 series is suitable for engines less than 200KW;The V8 series is suitable for more than 200KW to 500KW.
- They are widely apply to various engines,such as the vechicles;boats;generators,etc.
D.[Installation]
Note:
- The operator must have some experience;
- The flow meter can not installa near by the exhaust pipe to avoid increase the error
- The flow meter shoud be installa the location where low shock
- The flow meter should be installa where is easy to read the data
- To ensure the pipeline without air to avoid increasing error
- Installa the flow meter where lowest of pipeline
- Suggest installing the return oil processor
- Replace filter regular
