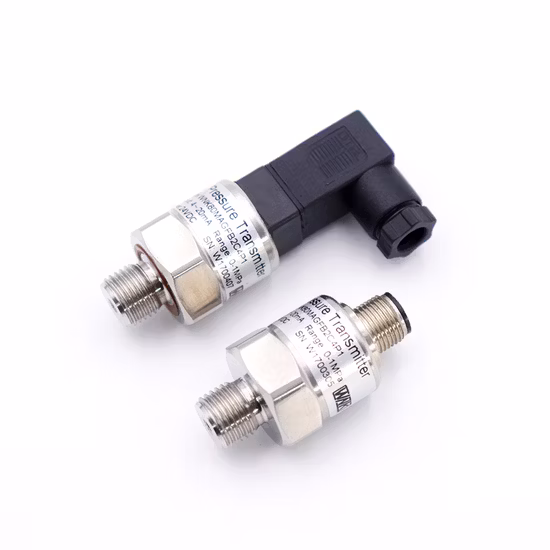

![Digital I2c 0.5](/uploads/s/794a7d5bce864375800974cdc2fec0db.webp)
Digital I2c 0.5
Digital I2C 0.5-4.5V 0-5V 0-10V 4-20mA OEM Miniature Pressure Transmitter WNK80mA integral pressure transmitter adopts s
Basic Info.
Model NO. | WNK80mA |
Certification | ISO |
Customized | Customized |
Stability | 0.25% F.S./Year |
Zero Drift | 0.5% of Full Range Span |
Housing Material | 304 Stainless Steel |
Output Signal | 4~20mA, 1-5V, 0.5-4.5V, 0-5V, I2c |
Transport Package | Each Set in One Individual Carton with Foam |
Specification | Stainless steel |
Trademark | WNK |
Origin | Anhui, China |
HS Code | 90262010 |
Production Capacity | 12000set/Month |
Product Description

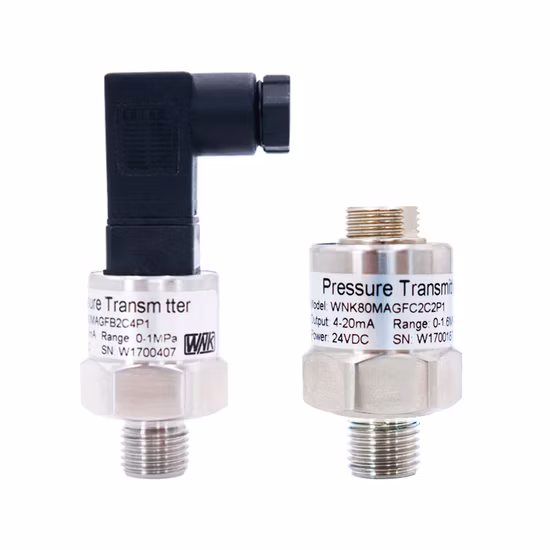

Digital I2C 0.5-4.5V 0-5V 0-10V 4-20mA OEM Miniature Pressure Transmitter
WNK80mA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably
Applicable media | Liquid, Gas | |
Pressure range | 0-20kPa~350bar | |
Pressure measurment | Gauge Pressure, Absolute pressure, Sealing pressure | |
Output | 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C | |
Accuracy(linearity, Hysteresis and Repeatability) | 0.5%F. S. (Typical) | |
Power supply | 24VDC/12VDC/5VDC | |
Compensation temperature | -20~85ºC | |
Ambient temperature | -40~125ºC | |
Working temperature | -40~125ºC | |
Temperature drift(zero) | ±0.15% F. S. (-20~85ºC) | |
Temperature drift(full range) | ±0.15% F. S. (-20~85ºC) | |
Power(electrical) connect | Parker joint, customization | |
Mechanical connection | G1/4, 1/8NPT, M12*1.5, customize | |
Housing material | 304 stainless steel(inner core is 316 stainless steel) | |
Protection | IP65 | |
Weight | 95g |
Ordering option
Remark: The pressure range is for using capacitive ceramic pressure sensor, for diffused silicon pressure sensor it can provide more wide range, please contact with us for details.
Why Choose us?
1. We are manufacturer, with more than 13 years producing experience in our field since 2004. 2. Our produce quality is guaranteed, since 100% of all products we do temperature compensation and aging test before shipment.
Delivery
7~15 days after order confirmed
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F, Bldg #6, No. 168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What's your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes. We can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, FedEx, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
